Enable TLS Encryption

TDS Quick Start Guide Enable TLS Encryption

The Threat

Communication between two servers can be intercepted (i.e., an HTTP transaction between the client and server). An attacker can eavesdrop on the conversation and control the relay of messages between the victims, making them believe that they are talking directly to each other over a private connection.

A potential goal of an attack is to steal personal information, such as login credentials.

Transport Layer Security (TLS)

Transport Layer Security (TLS), and formerly Secure Sockets Layer (SSL), is a cryptographic protocol that provides security and data integrity for communications over TCP/IP networks. TLS allows applications to communicate across a network in a way designed to prevent eavesdropping, tampering, and message forgery.

TLS uses a cryptographic system that uses two keys to encrypt data: a public key known to everyone and a private or secret key known only to the recipient of the message.

By convention, URLs that require an TLS connection start with https instead of http.

Note: For more information on how TLS works, Wikipedia details the steps involved during an TLS transaction.

TLS Certificates

A public key certificate is an electronic document which incorporates a digital signature to bind together a public key with identity information of the certificate user. The certificate can be used to verify that a public key belongs to an individual. The digital signature can be signed by a Certificate Authority (CA) or the certificate user (a self-signed certificate).

Do Not Use Self-Signed Certificates

Unidata highly recommends the use of a certificate signed by a Certificate Authority (CA) for the following reasons:

Browser warnings for self-signed certificates can be very confusing and make users question the legitimacy of your website.
More and more browsers are no longer supporting/displaying mixed http/https content.
It’s about trust: CA-signed certificates verify your identify to your users. If an attacker intercepts the traffic between your server and the client they can inject their own self-signed certificate in the place of your own. In such a case, the visitor likely will not notice.
Self-signed certificates cannot (by nature) be revoked, which may allow an attacker who has already gained access to monitor and inject data into a connection to spoof an identity if a private key has been compromised. Certificate Authorities, on the other hand, have the ability to revoke a compromised certificate.

Certificate `keystore` File

A keystore file stores the details of the Transport Layer Security certificate necessary to make the protocol secured. The Tomcat documentation includes a section on importing your certificate into a keystore file. Tomcat uses the keystore file for TLS transactions.

Enabling Transport Layer Security

The following steps are needed to create a secure connection for a web application (such as the TDS):

Modify the Tomcat server-level configurations to enable;
Define the users and roles who are perm
In the web application deployment descriptor.

Configuring TLS In Tomcat

The following example demonstrates enabling Transport Layer Security in the Tomcat Servlet Container on a linux system as the root user.

Imported your CA-signed certificate into the keystore file as per the Tomcat documentation.

Modify the Tomcat configuration to enable TLS:

Open ${tomcat_home}/conf/server.xml with your favorite text editor:

# vi server.xml

Locate the Java HTTP/1.1 Connector listening on port 8080 and verify it is redirecting TLS traffic to port 8443:

<Connector port="8080"
           protocol="HTTP/1.1"
           connectionTimeout="20000"
           redirectPort="8443" />

Find and uncomment the NIO implementation SSL HTTP/1.1 Connector listening on port 8443 to activate this connector:

<Connector port="8443"
           protocol="org.apache.coyote.http11.Http11NioProtocol"
           maxThreads="150"
           SSLEnabled="true">
    <SSLHostConfig>
        <Certificate certificateKeystoreFile="conf/localhost-rsa.jks"
                     type="RSA" />
    </SSLHostConfig>
</Connector>

More Information: Tomcat also offers a SSL/TLS HTTP/1.1 Connector which utilizes APR/native implementation. Consult the Documentation to see if you should use this connector in lieu of the NIO implementation SSL HTTP/1.1 connector.

Specify the keystore file in the certificateKeystoreFile attribute of the Certificate element to tell Tomcat where to find your keystore (the path will be relative to ${tomcat_home} directory).

In this example, the keystore file is ${tomcat_home}/conf/tds-keystore:

<Connector port="8443"
           protocol="org.apache.coyote.http11.Http11NioProtocol"
           maxThreads="150"
           SSLEnabled="true">
    <SSLHostConfig>
        <Certificate certificateKeystoreFile="conf/tds_keystore"
                     type="RSA"/>
    </SSLHostConfig>
</Connector>

If you opted to not use the default keystore password (changeit), you’ll need to specify the new password so Tomcat can open the file. Add the certificateKeystorePassword attribute of the Certificate element for your keystore password.

<Connector port="8443"
           protocol="org.apache.coyote.http11.Http11NioProtocol"
           maxThreads="150"
           SSLEnabled="true">
    <SSLHostConfig>
        <Certificate certificateKeystoreFile="conf/tds_keystore"
                     certificateKeystorePassword="foobar"
                     type="RSA"/>
    </SSLHostConfig>
</Connector>

Tip: Changes to ${tomcat_home}/conf/server.xml do not take effect until Tomcat is restarted.

Verify TLS has been enabled.

Restart Tomcat:

# /usr/local/tomcat/bin/shutdown.sh
# /usr/local/tomcat/bin/startup.sh

Verify Tomcat is listening on port 8443 by running the netstat command:

# netstat -an | grep tcp | grep 8443

tcp        0      0 0.0.0.0:8443                0.0.0.0:*                LISTEN

More Information: Run man netstat in your terminal window to learn more about this command.

Troubleshooting Tips

Check the XML syntax in ${tomcat_home}/conf/server.xml to make sure it is well-formed and without error.
Did you restart Tomcat after you made your changes to server.xml?
Did you specify the full path to the keystore file in server.xml?

Configuring TLS In Web Applications

The web application deployment descriptor, a.k.a. web.xml specifies if all or parts of the web application need to be accessed via TLS.

The deployment descriptor file is located in the WEB-INF directory of the web application:

${tomcat_home}/webapps/application_name/WEB-INF/web.xml

By convention, Tomcat and other servlet containers will read the web application deployment descriptors for several reasons, including:

initialization parameters
container-managed security constraints upon application deployment.

Example Deployment Descriptor Entry

This is the entry in the TDS web.xml for the TDS Remote Management Tool:

<security-constraint>
  <web-resource-collection>
    <url-pattern>/secret_stuff/*</url-pattern>
  </web-resource-collection>
  <auth-constraint>
    <role-name>vipUsersRole</role-name>
  </auth-constraint>
  <user-data-constraint>
    <transport-guarantee>CONFIDENTIAL</transport-guarantee>
  </user-data-constraint>
</security-constraint>

Simple descriptions of the relevant elements in the entry above:

Configuration	Description
`<security-constraint>`	Defines the access privileges to a collection of resources using their URL mapping.
`<web-resource-collection>`	A list of URL patterns that describe a set of resources to be protected.
`<url-pattern>`	The request URI to be protected.
`<auth-constraint>`	Specifies whether authentication is to be used and names the roles authorized to perform the constrained requests.
`<role-name>`	The role name of one of the security-role elements defined for this web application at the server-level (`${tomcat_home/conf/tomcat-users.xml`)
`<user-data-constraint>`	Establishes the data will be transported between client and server will take place over a protected transport layer connection.
`<transport-guarantee>`	Choices for type of transport guarantee include `NONE`, `INTEGRAL`, and `CONFIDENTIAL`: Specify `CONFIDENTIAL` when the application requires that data be transmitted so as to prevent other entities from observing the contents of the transmission. (E.g., via TLS.) Specify `INTEGRAL` when the application requires that the data be sent between client and server in such a way that it cannot be changed in transit. Specify `NONE` to indicate that the container must accept the constrained requests on any connection, including an unprotected one.

Note:
For more information on how to configure security requirements for a web application in a deployment descriptor, see: Defining Security Requirements for Web Applications.

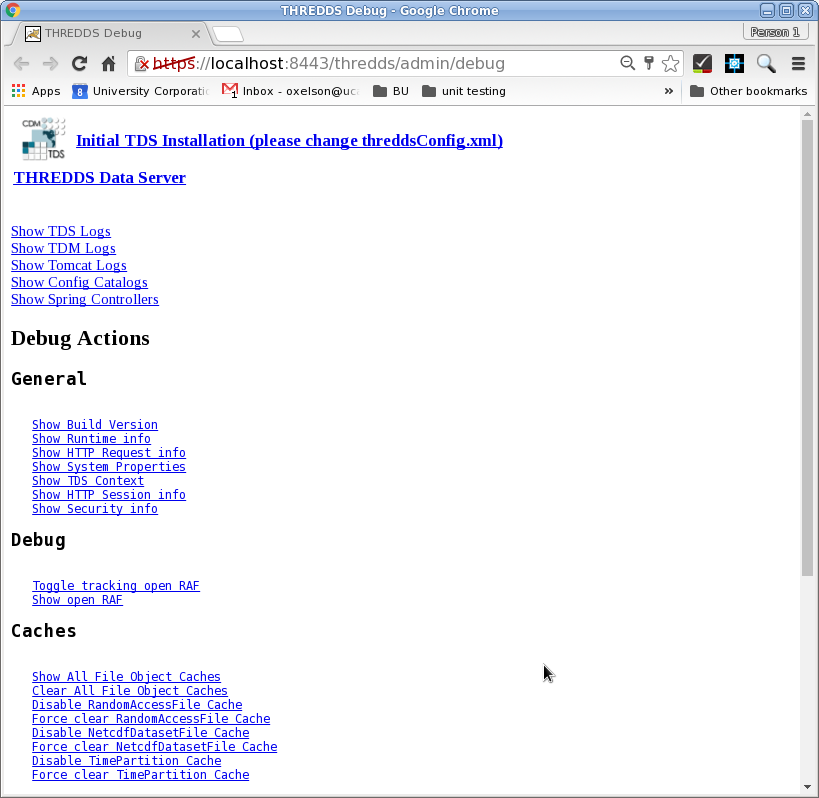

The TDS has been pre-configured to require TLS encryption to access the both the TDS Remote Management Tool, and the TdsMonitor Tool. You, the administrator, do not have to do anything.
