TDS User's Guide Running Tomcat

This section examines starting/stopping the Tomcat Servlet Container as well as configuring the JVM for the TDS.

Note: This section assumes you have successfully installed the Tomcat Servlet Container as outlined in the Installation of Java and Tomcat section.

Starting & Stopping Tomcat

The following example shows stopping/starting Tomcat on a linux system, as the root user. (This example will work on Mac OS systems as well. For a Windows installation, use the .bat files in place of the .sh scripts used in the provided examples.)

Tomcat isn’t currently running so we need to start it up.

Run the startup.sh script in the ${tomcat_home}/bin directory (${tomcat_home} is /usr/local in this example):
```
# pwd
/usr/local/tomcat

# bin/startup.sh
```

Verify Tomcat is running.

Look and see if you have a Tomcat process running:

# ps -ef | grep tomcat
root   4293     1 99 14:04 pts/2    00:00:06 /usr/local/jdk/bin/java -Djava.util.logging.config.file=/usr/local/tomcat/conf/logging.properties -Djava.util.logging.manager=org.apache.juli.ClassLoaderLogManager -Djdk.tls.ephemeralDHKeySize=2048 -Djava.protocol.handler.pkgs=org.apache.catalina.webresources -Dorg.apache.catalina.security.SecurityListener.UMASK=0027 -Dignore.endorsed.dirs= -classpath /usr/local/tomcat/bin/bootstrap.jar:/usr/local/tomcat/bin/tomcat-juli.jar -Dcatalina.base=/usr/local/tomcat -Dcatalina.home=/usr/local/tomcat -Djava.io.tmpdir=/usr/local/tomcat/temp org.apache.catalina.startup.Bootstrap start
root   4366 23720  0 14:04 pts/2    00:00:00 grep tomcat

Open a new browser window/tab and go to http://localhost:8080/ to verify Tomcat is running:

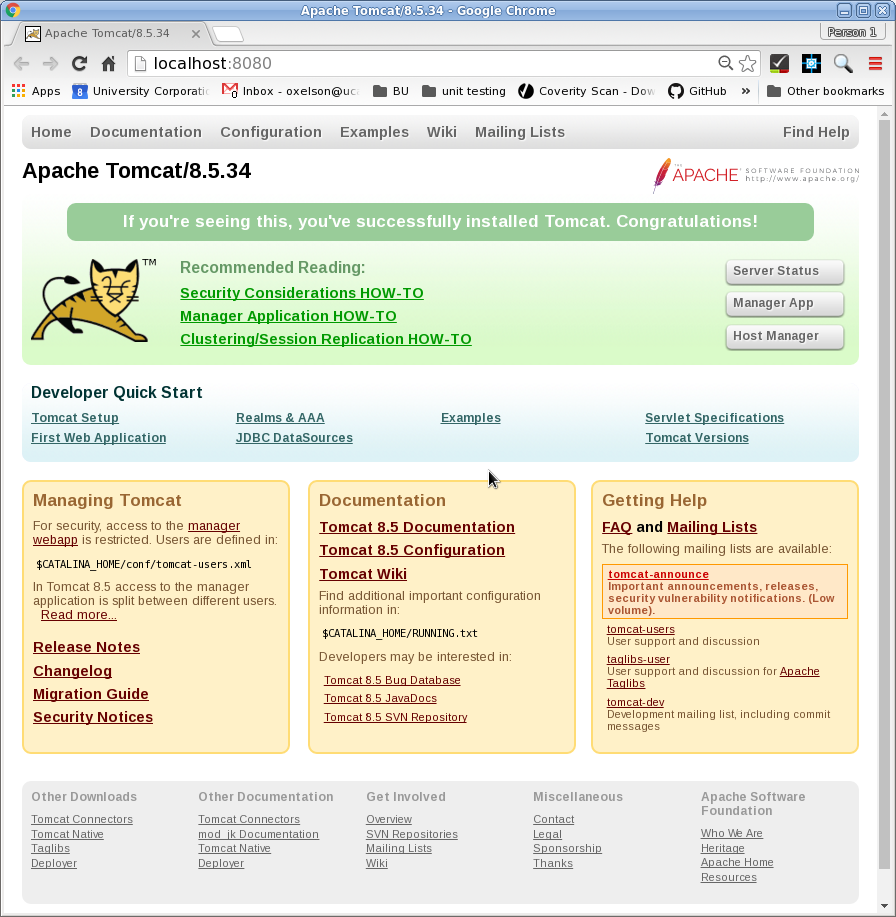

Tomcat Default Home Page — If you see this page, Tomcat is running!

See if you can shutdown Tomcat.

Run the shutdown.sh script in the ${tomcat_home}/bin directory (${tomcat_home} is /usr/local in this example):
```
# pwd
/usr/local/tomcat

# bin/shutdown.sh
```

Question: Which Java is Tomcat currently using? (Hint: what was sent to STDOUT when running startup.sh and shutdown.sh?)

Troubleshooting: Check the logs mostly recently generated in the ${tomcat_home}/logs directory for clues about why Tomcat failed to start or stop. Pay particular attention to what is being reported in Tomcat’s main log file: catalina.out.

Setting `$JAVA_HOME`, `$JAVA_OPTS`, `$CATALINA_HOME`, `$CATALINA_BASE`, And `$CONTENT_ROOT`

We are going to create a file called setenv.sh in the ${tomcat_home}/bin directory to:

allow Tomcat to reference/find the location of $JAVA_HOME and $CATALINA_BASE) during startup and shutdown;
increase the amount of memory allocated to the JVM to enhance performance by setting $JAVA_OPTS; and
add additional settings to the JVM via $JAVA_OPTS to enable more advanced services in the TDS (e.g, WMS, etc).

Tomcat’s ${tomcat_home}/bin/startup.sh script executes the catalina.sh script found in the same directory.
catalina.sh is the main control script for the Tomcat Servlet Container which is executed on server startup and shutdown (also called from the ${tomcat_home}/bin/shutdown.sh script).

When executed, the catalina.sh script will look for a setenv.sh in the ${tomcat_home}/bin directory.
If it finds setenv.sh, it will apply the custom environment and JVM configurations specified within the file.
(Thus, saving you the trouble of directly modifying and potentially introducing errors in the important catalina.sh script).

Note: If you’re running Tomcat on an instance of Windows OS, you will want to create a setenv.bat file.

Download an example here.

Create the setenv.sh file.

Use your favorite text editor to create a new file called setenv.sh in the ${tomcat_home}/bin directory (${tomcat_home} is /usr/local in this example):

# cd /usr/local/tomcat/bin
# vi setenv.sh

Add the following information to you setenv.sh file and save it:

#!/bin/sh
#
# ENVARS for Tomcat
#
export CATALINA_HOME="/usr/local/tomcat"

export CATALINA_BASE="/usr/local/tomcat"

export JAVA_HOME="/usr/local/jdk"

# TDS specific ENVARS
#
# Define where the TDS content directory will live
#   THIS IS CRITICAL and there is NO DEFAULT - the
#   TDS will not start without this.
#
CONTENT_ROOT=/data/content
CONTENT_ROOT_OPT=-Dtds.content.root.path=$CONTENT_ROOT

# Set java prefs related variables (used by the wms service, for example)
JAVA_PREFS_ROOTS="-Djava.util.prefs.systemRoot=$CONTENT_ROOT/thredds/javaUtilPrefs \
                  -Djava.util.prefs.userRoot=$CONTENT_ROOT/thredds/javaUtilPrefs"

#
# Some commonly used JAVA_OPTS settings:
#
NORMAL="-d64 -Xmx4096m -Xms512m -server"
HEAP_DUMP="-XX:+HeapDumpOnOutOfMemoryError"
HEADLESS="-Djava.awt.headless=true"
CHRONICLE_CACHE="--add-exports java.base/jdk.internal.ref=ALL-UNNAMED --add-exports java.base/sun.nio.ch=ALL-UNNAMED --add-exports jdk.unsupported/sun.misc=ALL-UNNAMED --add-exports jdk.compiler/com.sun.tools.javac.file=ALL-UNNAMED --add-opens jdk.compiler/com.sun.tools.javac=ALL-UNNAMED --add-opens java.base/java.lang=ALL-UNNAMED --add-opens java.base/java.lang.reflect=ALL-UNNAMED --add-opens java.base/java.io=ALL-UNNAMED --add-opens java.base/java.util=ALL-UNNAMED"

#
# Standard setup.
#
JAVA_OPTS="$CONTENT_ROOT_OPT $NORMAL $HEAP_DUMP $HEADLESS $JAVA_PREFS_ROOTS $CHRONICLE_CACHE"

export JAVA_OPTS

Important: Whenever possible, Unidata recommends -Xmx4096m (or more) for 64-bit systems.

The parameters we pass to $JAVA_OPTS:

CONTENT_ROOT is TDS-specific, and defines the location of where TDS-related configuration files will be stored. This MUST be set!
The TDS will not start without it.
It is also a good idea to locate this directory somewhere separate from ${tomcat_home} on your file system.
-Xms is the initial and minimum allocated memory of the JVM (for performance).
-Xmx the maximum allocated memory of the JVM (for performance).
-server tells the Hotspot compiler to run the JVM in “server” mode (for performance).
-Djava.awt.headless=true is needed to prevent graphics rendering code from assuming a graphics console exists. Without this, WMS code will crash the server in some circumstances.
-Djava.util.prefs.systemRoot=$CONTENT_ROOT/thredds/javaUtilPrefs -Djava.util.prefs.userRoot=$CONTENT_ROOT/thredds/javaUtilPrefs allows the java.util.prefs of the TDS WMS to write system preferences to a location that is writable by the Tomcat user.
The parameters in $CHRONICLE_CACHE are required by the chronicle libraries to run with JDK 17

Note: For more information about the possible options/arguments available for $JAVA_OPTS, please consult the Oracle Documentation.

Implement your changes by restarting Tomcat.

Restart Tomcat and examine the output generated to the terminal window by the startup script:

# ./startup.sh
Using CATALINA_BASE:   /usr/local/tomcat
Using CATALINA_HOME:   /usr/local/tomcat
Using CATALINA_TMPDIR: /usr/local/tomcat/temp
Using JRE_HOME:        /usr/local/jdk
Using CLASSPATH:       /usr/local/tomcat/bin/bootstrap.jar:/usr/local/tomcat/bin/tomcat-juli.jar
Tomcat started.

Question: Did you notice any difference in the what is being reported to STDOUT during startup?

Take a look at the running Tomcat process to see the new $JAVA_OPTS settings:

# ps -ef | grep tomcat
root   7988     1 13 14:17 pts/2    00:00:05 /usr/local/jdk/bin/java -Djava.util.logging.config.file=/usr/local/tomcat/conf/logging.properties -Djava.util.logging.manager=org.apache.juli.ClassLoaderLogManager -Dtds.content.root.path=/usr/local/tomcat/content -d64 -Xmx4096m -Xms512m -server -XX:+HeapDumpOnOutOfMemoryError -Djava.awt.headless=true -Djava.util.prefs.systemRoot=/usr/local/tomcat/content/thredds/javaUtilPrefs -Djava.util.prefs.userRoot=/usr/local/tomcat/content/thredds/javaUtilPrefs -Djdk.tls.ephemeralDHKeySize=2048 -Djava.protocol.handler.pkgs=org.apache.catalina.webresources -Dorg.apache.catalina.security.SecurityListener.UMASK=0027 -Dignore.endorsed.dirs= -classpath /usr/local/tomcat/bin/bootstrap.jar:/usr/local/tomcat/bin/tomcat-juli.jar -Dcatalina.base=/usr/local/tomcat -Dcatalina.home=/usr/local/tomcat -Djava.io.tmpdir=/usr/local/tomcat/temp org.apache.catalina.startup.Bootstrap start
root   8279 23720  0 14:18 pts/2    00:00:00 grep tomcat

Note: For more information on the environment variable prerequisites used by Tomcat, consult ${tomcat_home}/bin/catalina.sh (or catalina.bat) file.

Troubleshooting

Some platforms may require the ${tomcat_home}/bin/setenv.sh file to have executable permissions (this issue will manifest itself as permission errors in the log files).
Do not forget include the m in your -Xms and -Xmx settings.
You may have allocated too much memory for the JVM settings if Tomcat fails to start, and you get the following error reported in the Tomcat log catalina.out:
```
Error occurred during initialization of VM
Could not reserve enough space for object heap
```
Likewise, if there is an error with your JVM memory allocation syntax in the setenv.sh file, it will be reported to catalina.out:
```
Error occurred during initialization of VM
Incompatible minimum and maximum heap sizes specified
```

If you intend to use WMS and see something like the following in reported in catalina.out:

May 25, 2010 6:28:22 PM java.util.prefs.FileSystemPreferences syncWorld
WARNING: Couldn't flush system prefs: java.util.prefs.BackingStoreException: /etc/.java/.systemPrefs/org create failed.

You will need confirm java.util.prefs.systemRoot system property is set in $JAVA_OPTS to a location that is writable by the user that Tomcat, e.g.:

# Set java prefs related variables (used by the wms service, for example)
JAVA_PREFS_ROOTS="-Djava.util.prefs.systemRoot=$CONTENT_ROOT/thredds/javaUtilPrefs \
                  -Djava.util.prefs.userRoot=$CONTENT_ROOT/thredds/javaUtilPrefs"

Next Step

Next, we’ll examine the log files generated by the Tomcat Servlet Container and the information found in them.
